Introduction to Convolutional Neural Networks

When it comes to Machine Learning, Artificial Neural Networks perform really well. Artificial Neural Networks are used in various classification task like image, audio, words. For Image Classification we use Convolution Neural Network. Here, we are going to build basic building block for CNN.

How CNNs Work ?

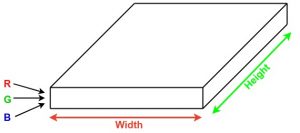

Convolution Neural Networks or covnets are neural networks that share their parameters. Imagine you have an image. It can be represented as a cuboid having its length, width (dimension of the image) and height (as image generally have red, green, and blue channels).

Now imagine taking a small patch of this image and running a small neural network on it, with say, k outputs and represent them vertically. Now slide that neural network across the whole image, as a result, we will get another image with different width, height, and depth. Instead of just R, G and B channels now we have more channels but lesser width and height. This operation is called Convolution. If patch size is same as that of the image it will be a regular neural network. Because of this small patch, we have fewer weights.

Math of CNNs

Now let’s talk about a bit of mathematics which is involved in the whole convolution process.

• Convolution layers consist of a set of learnable filters (patch in the above image). Every filter has small width and height and the same depth as that of input volume (3 if the input layer is image input).
• For example, if we have to run convolution on an image with dimension 34x34x3. Possible size of filters can be axax3, where ‘a’ can be 3, 5, 7, etc but small as compared to image dimension.
• During forward pass, we slide each filter across the whole input volume step by step where each step is called stride (which can have value 2 or 3 or even 4 for high dimensional images) and compute the dot product between the weights of filters and patch from input volume.
• As we slide our filters we’ll get a 2-D output for each filter and we’ll stack them together and as a result, we’ll get output volume having a depth equal to the number of filters. The network will learn all the filters.

Types of CNN Layers

Let’s take an example by running a covnets on of image of dimension 32 x 32 x 3.

1. Input Layer: This layer holds the raw input of image with width 32, height 32 and depth 3.
2. Convolution Layer: This layer computes the output volume by computing dot product between all filters and image patch. Suppose we use total 12 filters for this layer we’ll get output volume of dimension 32 x 32 x 12.
3. Activation Function Layer: This layer will apply element wise activation function to the output of convolution layer. Some common activation functions are RELU: max(0, x), Sigmoid: 1/(1+e^-x), Tanh, Leaky RELU, etc. The volume remains unchanged hence output volume will have dimension 32 x 32 x 12.

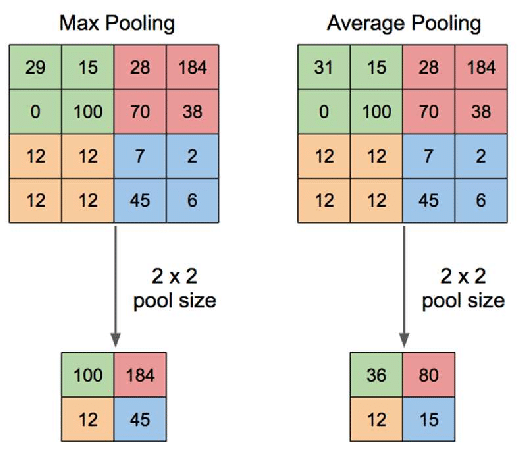

4. Pool Layer: This layer is periodically inserted in the covnets and its main function is to reduce the size of volume which makes the computation fast reduces memory and also prevents from overfitting. Two common types of pooling layers are max pooling and average pooling. If we use a max pool with 2 x 2 filters and stride 2, the resultant volume will be of dimension 16x16x12.
5. Fully Connected Layer: This layer is regular neural network layer which takes input from the previous layer and computes the class scores and outputs the 1-D array of size equal to the number of classes.

The final Convolutional Neural Network is made up of a combination of these layers,

For better understanding of CNNs and the Math behind it along eith the code, check out the jupyter notebook here.
